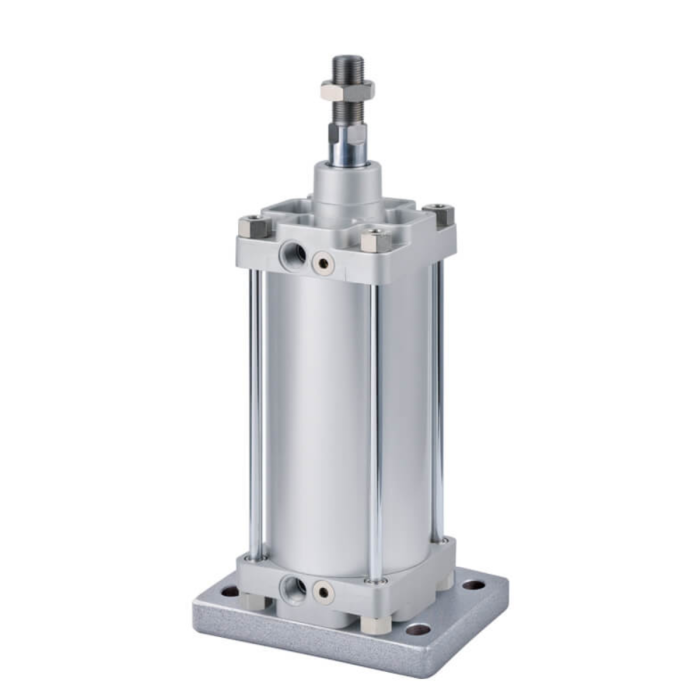

Mindman ISO-VDMA Standard Profile Cylinder Model: MCQV2-11-40-160M

Product Description
The Mindman MCQV2-11-40-160M is a high-precision pneumatic cylinder designed in accordance with ISO 15552 and VDMA 24562 standards. With a 40 mm bore and 160 mm stroke, this profile cylinder ensures reliable linear motion in a wide range of industrial automation systems. It features an aluminum profile tube with integrated sensor grooves for seamless sensor installation, reducing setup time and enhancing functionality.

Features

• ISO 15552 and VDMA 24562 compliant for global compatibility

• Bore size: 40 mm; Stroke length: 160 mm

• Lightweight and corrosion-resistant aluminum profile body

• Integrated sensor slots for non-contact proximity sensors

• Adjustable cushioning on both ends for smooth operation

• High precision and durability for demanding industrial environments

• Double-acting operation for efficient bidirectional movement

• Long service life with low maintenance requirements

Weight
Approx. 2.10 kg

Specifications

• Model: MCQV2-11-40-160M

• Bore Size: 40 mm

• Stroke: 160 mm

• Standard: ISO 15552 / VDMA 24562

• Mounting Style: Basic (can be adapted with various brackets)

• Operating Pressure: 1.0 to 9.0 kgf/cm² (0.1 to 0.9 MPa)

• Operating Temperature: -5°C to 70°C

• Cushion Type: Adjustable air cushion

• Piston Rod: Stainless steel

• Lubrication: Not required (pre-lubricated)

Benefits

• Ensures interchangeability across ISO-standard pneumatic systems

• Integrated sensor grooves eliminate external sensor brackets

• Smooth adjustable cushioning enhances performance and lifespan

• Suitable for a wide range of industrial and automation applications

• Maintenance-free design increases uptime and lowers operating costs

Usage
Ideal for use in automation equipment, machine tools, packaging machines, material handling systems, and production lines that require precise and reliable linear motion.
